Công tắc mức

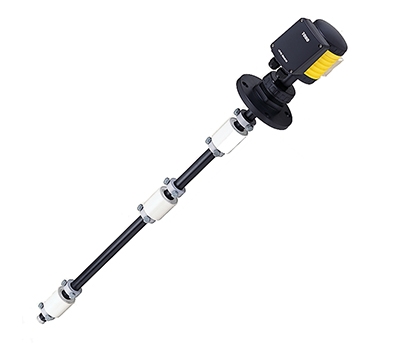

Type TL-101

 Compact outdoor terminal box
 It is a level sensor totally made of resins.

 It plays an active role in liquid amount/liquid level control

  in various industrial processes.

Chi tiết sản phẩm

Advantages

・Terminal box made of AES having excellent weatherability.

・A movable union type mounting flange (JIS 5K 50A standard).

 *By removing the flange, a screw of F2B can be mounted.

・Equipped with a HIPVC stem as standard specifications.
・The product can be provided at low price/with short delivery time.

Applications

・Liquid level management and control for tanks.



Specifications

Type TL-101V TL-101H
Terminal box Material AES
Construction Drip-proof
Electric wire feeding port PF1/4 waterproof plug
Installation Dimensions JIS5K 50A Flange
PF2B *1
Material AES
Float Dimensions Φ48×55mm
Material PP
Specific gravity more than 0.7
Viscosity (CP) 500
Stem Outer diameter Φ22mm
Material HI PVC HT PVC
Dimension L(MAX) 3950mm
Electricity rating Maximum operating current AC10VA/DC10VA
Maximum contact capacity AC10VA/DC10VA
Maximum operating voltage AC100V/DC200V
Maximum number of detection 5
Others Operating temperature range 0-50℃ 0-80℃
Dimension of contact intervals(MIN) 120mm

*By removing the flange, a screw of F2B can be mounted.
