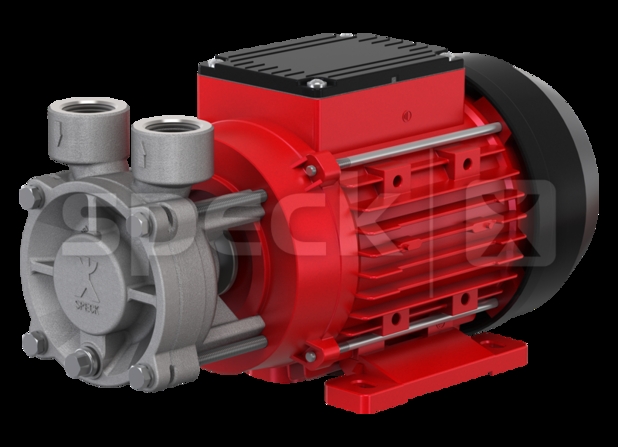

CY- 4081

Chi tiết sản phẩm

50 Hz

Qmax

Hmax

CY-4081 / Q 45, 2800 1/min

42 l/min

55 m

CY-4081 / Q 60, 2800 1/min

55 l/min

58 m





Media

  • Water max. 140 °C
  • Oil max. 160 °C

Design

Close-coupled version

in ax/top and top/top-version

Motor

0,75 – 1,0 kW, 1~Mot / 3~Mot

Materials

  • Brass
  • Stainless steel

Suction connection

G 3/4; ax/top G 1

Pressure connection

G 3/4

Sealing

  • Mechanical seal

Dimensions (WHD)

135 x 175 x 288 mm

Weight

9,4 kg


Advantages

  • Suitable for the delivery of gas shares
  • Steep characteristic curve
  • High pressures with compact design

Applications

  • Tempering of tool moulds
  • Cooling of machines, systems and production processes
  • Cooling in the semiconductor industry
  • Cooling of industrial lasers
  • Temperature control of control cabinets
  • Delivery of drinking water and service water in train wagons
  • Delivery of propionic acid for corn preservation
