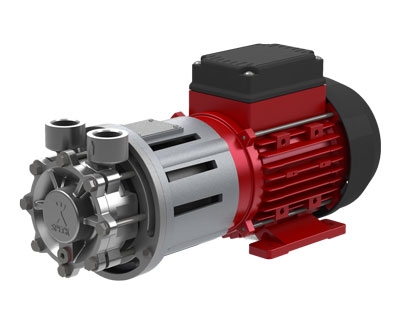

CY-4281-MK

Chi tiết sản phẩm

50 Hz

Qmax

Hmax

CY-4281-MK / Q 30, 2800 1/min

30 l/min

70 m

CY-4281-MK / Q 60, 2800 1/min

60 l/min

57 m

CY-4281-MK / Q 90, 2800 1/min

90 l/min

78 m





Media

  • Water max. 140 °C
  • Oil max. 180 °C

Design

Close-coupled version

Motor

1,0 – 2,2 kW, 3~Mot

Materials

  • Stainless steel

Suction connection

G 3/4

Pressure connection

G 3/4

Sealing

  • Separating can / Magnetic drive

Dimensions (WHD)

135–153 x 175–194 x 364–411 mm

Weight

15,0 – 19,5 kg


Advantages

  • Suitable for the delivery of gas shares
  • Steep characteristic curve
  • High pressures with compact design
  • Leakage-free and maintenance-free due to magnetic coupling
  • Possible reverse operation

Applications

  • Tempering of tool moulds
  • Cooling of machines, systems and production processes
  • Cooling in the semiconductor industry
