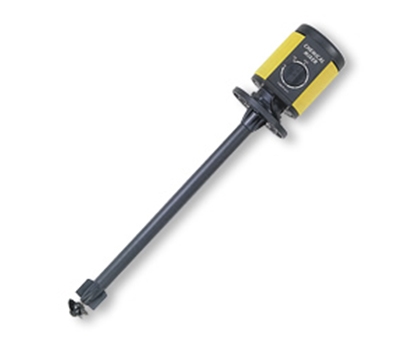

Máy khuấy mịn

Being light in weight and miniaturized, an ultra high performance

chemical mixerthat has won a Good Design Award.

By means of an ultra small high efficiency impeller and a stator of a screw

designthat exploited the technical expertise of the Shipbuilding Research

Center of Japan, there occurs no vortex on water surface.


Chi tiết sản phẩm

Advantages

・For the purpose of miniaturization and weight reduction, titanium is used for the shaft,

   and PPS resin is used for the impeller.  The weight is only 2.8 - 3kg!

・Because the mixer is miniaturized and lightweight, no dedicated platform is required

   when installing the mixer onto a tank.

・An ultra small high efficiency impeller that has been developed by exploiting the technical expertise

 of the Shipbuilding Research Center of Japan.

・By employing the ultra small high efficiency impeller, the mixer can be installed onto

 the mouth of a drum, etc. as it is.

・By employing the ultra small high efficiency impeller and the stator, there is hardly

 any occurrence of cavitation.

・With the impeller and shaft being set beforehand, no on-site assembly work is required.

 If the JIS 5K 50A flange is detached,

 the mixer becomes of the PF2B screw-in type as well.

・Since no gear speed reduction is employed, there is hardly any sound or vibration.

・Because materials such as PP/titanium/PPS/PTFE are used as standard specifications,

 the mixer has excellent corrosion resistance and is best suited to the dissolution of chemicals.

・Using the best materials that have been chosen, high cost and high performance are realized.

・The materials of the guide and stator of the standard type are PP,

 of which heat resistant temperature is 80℃

 (those made of PVDF have a heat resistant temperature of 100℃).

Put the double-oil seals to the motor side and housing of main body side,

 that prevent the ingress of corrosive gases.

We won the special prize of Smaller Enterprise Agency’s Director in the 1997.

 It is possible to install to the outside field, and we stuck to the chemical mixer's appearance.

Handy grip which is holding the chemical mixer by hands to use.

TCMcompactgrip

Applications
・Dissolution of chemicals.
・Dissolution of salt or powder.
・Dissolution of fertilizers.
・Agitation in an reaction tank.
・Agitation of stored solution.



Specifications

Type Voltage Output Frequency Number of revolutions Rated current Rated current Maximum mixing capacity Weight
TCM-455 100/
200V
45W 50Hz 2700rpm 0.88A/
0.4A
JIS 5k 50A
Flange
200L 2.9Kg
TCM-456 100/
200V
45W 60Hz 3200rpm 0.88A/
0.4A
JIS 5k 50A
Flange
200L 2.9Kg
TCMS-455 100 45W 50Hz 500~
2600rpm
0.88A JIS 5k 50A
Flange
200L 2.9Kg
TCMS-456 100 45W 60Hz 600~
3100rpm
0.88A JIS 5k 50A
Flange
200L 2.9Kg
