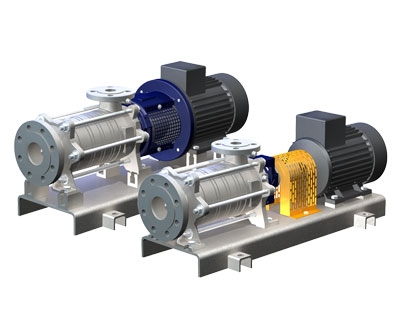

Model: ASK/ASK_MK

Chi tiết sản phẩm

50 Hz

Qmax

Hmax

ASK-20, 1450 1/min

3 m³/h

25 – 200 m

ASK-32, 1450 1/min

5 m³/h

45 – 325 m

ASK-33, 1450 1/min

8 m³/h

35 – 230 m

ASK-40, 1450 1/min

12 m³/h

35 – 250 m

ASK-50, 1450 1/min

20 m³/h

45 – 295 m

ASK-65, 1450 1/min

35 m³/h

50 – 335 m





Media

  • Water max. 180 °C

Design

In base plate version or bracket version, modular design in 6 sizes

Nominal pressure PN 40

Motor

0,37 – 55,0 kW, 3~Mot

Materials

  • Stainless steel
  • Spheroidal graphite cast iron

Suction connection

DN 40 – DN 100

Pressure connection

DN 20 – DN 65

Sealing

  • Separating can / Magnetic drive
  • Mechanical seal

Advantages

  • Robust design
  • Long service life and low maintenance costs
  • High operational safety
  • Magnetic coupled version is leakage- and maintenance-free
  • Combined pump for the delivery of liquids at unfavourable suction-side conditions
  • Supply heads of less than 0.5 m after consultation with the works
  • Pump application for liquids close to boiling point
  • Very favourable NPSH behaviour
  • Low dynamic load (n = 1450 rpm)

Applications

  • Delivery of hot water in boiler sytems
  • Recovery of condensates (water)
  • Delivery of liquid gas
  • Delivery of salt water and fresh water
  • Extraction of palm-oil
