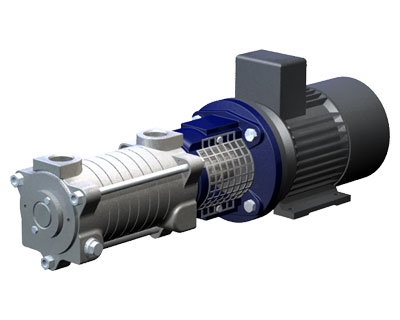

Model: GY-028 -1/2/3

Chi tiết sản phẩm

50 Hz

Qmax

Hmax

GY-028-1, 2800 1/min

32 l/min

60 m

GY-028-2, 2800 1/min

34 l/min

120 m

GY-028-3, 2800 1/min

35 l/min

165 m





Media

  • Water max. 120 °C

Design

Closed coupled version

With elastic coupling

Motor

0,55 – 1,50 kW, 3~Mot

Materials

  • Stainless steel
  • Cast iron

Suction connection

G 3/4

Pressure connection

G 3/4

Sealing

  • Mechanical seal

Dimensions (WHD)

138–170 x 190–238 x 395–467 mm

Weight

4,0 – 8,1 kg


Advantages

  • Suitable for the delivery of gas shares
  • Steep characteristic curve
  • High pressures due to modular design

Applications

  • Delivery of hot water in boiler sytems
  • Recovery of condensates (water)
