Model: SK/SK-MK

Chi tiết sản phẩm

50 Hz

Qmax

Hmax

SK-20, 1450 1/min

2 m³/h

25 – 200 m

SK-33, 1450 1/min

8 m³/h

35 – 230 m

SK-32, 1450 1/min

5 m³/h

35 – 325 m

SK-40, 1450 1/min

12 m³/h

35 – 250 m

SK-50, 1450 1/min

20 m³/h

30 – 280 m

SK-65, 1450 1/min

35 m³/h

40 – 335 m





Media

  • Water max. 120 °C

Design

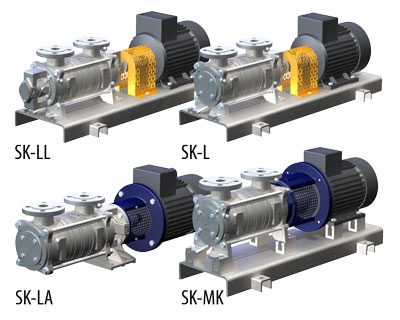

In base plate or bracket version in modular design in 6 sizes



SK-L up to 3 stages, pump in acc. with EN 734 standard

SK-LL up to 8 stages, pump in acc. with EN 734 standard

SK-LA with bracket up to 3 stages, fitting dimensions and hydraulics in acc. with EN 734 standard

SK-MK with magnetic coupling up to 8 stages, fitting dimensions and hydraulics in acc. with EN 734 standard

Motor

0,37 – 55,0 kW, 3~Mot

Materials

  • Stainless steel
  • Bronze
  • Cast iron

Suction connection

DN 20 – DN 65

Pressure connection

DN 20 – DN 65

Sealing

  • Separating can / Magnetic drive
  • Mechanical seal

Advantages

  • Application under difficult conditions in industry
  • Magnetic coupled version is leakage- and maintenance-free
  • high operational safety

Applications

  • Delivery of hot water in boiler sytems
  • Delivery of salt water and fresh water
