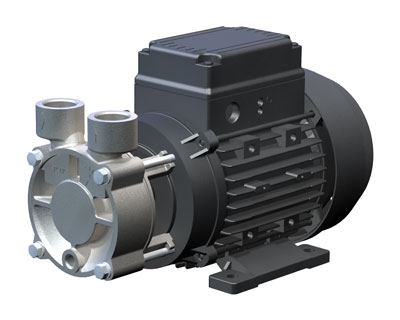

Model: Y- 4081

Chi tiết sản phẩm

Y-4081 2800 1/min                       Qmax:19 l/min

H max: 38 m





Media

  • Water max. 140 °C
  • Oil max. 160 °C

Design

Close-coupled version

In top/top and ax/top version

Motor

0,75 – 1,5 kW, 3~Mot

Materials

  • Brass
  • Stainless steel

Suction connection

G 3/4; ax/top: G 1

Pressure connection

G 3/4

Sealing

  • Mechanical seal

Dimensions (WHD)

135 x 175 x 276 mm

Weight

9,5 kg


Advantages

  • Suitable for the delivery of gas shares
  • Steep characteristic curve
  • High pressures with compact design

Applications

  • Tempering of tool moulds
  • Cooling of machines, systems and production processes
  • Cooling in the semiconductor industry
  • Cooling of industrial lasers
  • Temperature control of control cabinets
  • Delivery of propionic acid for corn preservation
