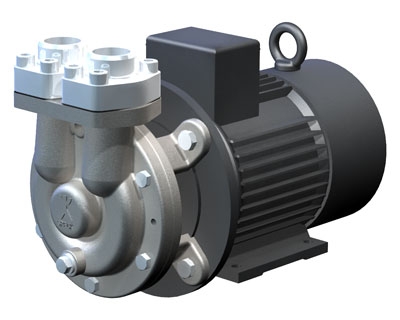

Model: Y-6091

Chi tiết sản phẩm

50 Hz

Qmax

Hmax

Y-6091  2800 1/min

185 l/min

80 m

Media

  • Water max. 140 °C
  • Oil max. 180 °C

Design

Close-coupled version

Motor

2,8 – 4,0 kW, 3~Mot

Materials

  • Brass
  • Stainless steel

Suction connection

CuZn: SAE 1

1.4581: SAE 1 1/4, G 1 1/4

Pressure connection

CuZn: SAE 1

1.4581: SAE 1 1/4, G 1 1/4

Sealing

  • Mechanical seal

Dimensions (WHD)

176–225 x 243–280 x 404–438 mm

Weight

30,6 kg


Advantages

  • Suitable for the delivery of gas shares
  • Steep characteristic curve
  • High pressures with compact design

Applications

  • Tempering of tool moulds
  • Cooling of machines, systems and production processes
  • Cooling of transformers in railcars
