Model: Y/YS- 2051

Chi tiết sản phẩm

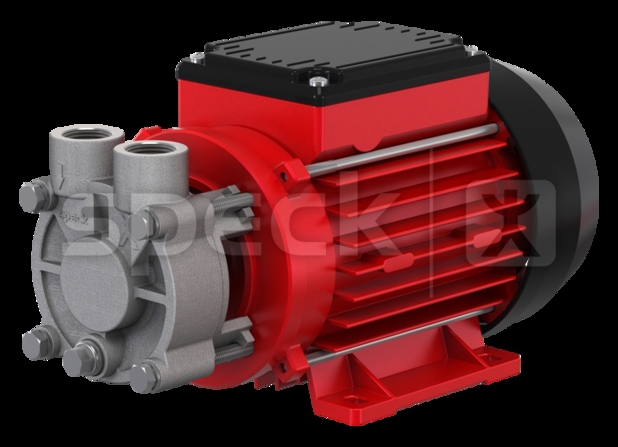

Small regenerative turbine pumps, YS-2051 self-priming

YS-2051, 2800 1/min

Qmax:19 l/min

H max: 38 m

Media

  • Water max. 140 °C
  • Oil max. 140 °C





Design

Close-coupled version

Y-2051 in top/top and ax/top version

YS-2051 in top/top version, self-priming

Motor

0,35 kW, 1~Mot

0,50 kW, 3~Mot

Materials

  • Brass
  • Stainless steel
  • Plastics

Suction connection

G 1/2; ax/top: G 1

Pressure connection

G 1/2

Sealing

  • Mechanical seal

Dimensions (WHD)

120 x 140–158 x 241–269 mm

Weight

6,2 kg


Advantages

  • Suitable for the delivery of gas shares
  • High pressures with compact design

Applications

  • Tempering of tool moulds
  • Cooling in the semiconductor industry
  • Cooling of industrial lasers
  • Temperature control of control cabinets
  • Cooling of welding devices (welding pistols and circuits)
  • Temperature control in laboratory applications
  • Delivery of brines in brine injection machines
