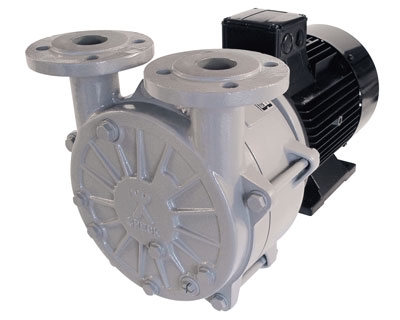

V series

Chi tiết sản phẩm

50 Hz

Qmax

pmin

V-6, 2850 1/min

10 m³/h

40 mbar

V-30, 2850 1/min

26 m³/h

33 mbar

V-55, 2850 1/min

48 m³/h

33 mbar

V-95, 1450 1/min

70 m³/h

33 mbar

V-130, 1450 1/min

100 m³/h

33 mbar

V-155, 1450 1/min

123 m³/h

33 mbar

V-255, 1450 1/min

199 m³/h

33 mbar

V-330, 1450 1/min

265 m³/h

33 mbar

V-430, 1450 1/min

370 m³/h

33 mbar





Media

  • Dry and humidified gases
  • Operational liquid max. 80 °C
  • Absorbed gas max. 120 °C

Design

Single-stage pumps with valve technology

Close-coupled versions with B35 close-to standard motors

Bracket version with B5 standard motors

Sound pressure level 65 – 72 db(A)

Motor

0,4 – 11,0 KW, 1~Mot / 3~Mot

Materials

  • Stainless steel
  • Cast iron
  • Non-ferrous metal

Suction connection

G 3/8 – DN 65

Pressure connection

G 3/8 – DN 65

Sealing

  • Mechanical seal

Advantages

  • Tried-and-tested robust design
  • Low investment costs due to close coupled version

Applications

  • Extruder degasification
  • Vacuum calibration for the manufacturing of plastic profiles
  • Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization)
  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Degasification (oxygen deprivation) of meat and sausage products
  • Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam
