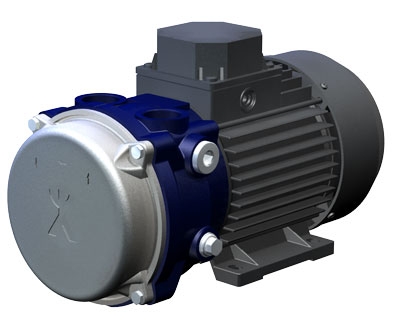

VI Series

Chi tiết sản phẩm

50 Hz

Qmax

pmin

VI-2, 2850 1/min

2 m³/h

45 mbar

VI-8, 2850 1/min

10 m³/h

40 mbar

VI-18, 2850 1/min

18 m³/h

40 mbar

VI-25, 2850 1/min

24 m³/h

40 mbar

VI-30, 2850 1/min

27 m³/h

33 mbar

VI-55, 2850 1/min

46 m³/h

33 mbar





Media

  • Dry and humidified gases
  • Operational liquid max. 80 °C
  • Absorbed gas max. 120 °C

Design

Single-stage pumps in inverted design with valves and internal water restraining system

Sound pressure level 65 - 68 db(A) at 80 mbar

Motor

0,12 – 2,2 KW, 1~Mot / 3~Mot

Materials

  • Stainless steel
  • Non-ferrous metal

Suction connection

G 1/4 – G 1

Pressure connection

G 1/4 – G 1

Sealing

  • Mechanical seal

Advantages

  • Water saving: at suction pressures < 600 mbar, the water can be completely retained in the pump
  • Low noise due to optimized hydraulics and separation
  • Low calcification risk and easy temperature control possible
  • Easy disassembly due to inverted design and O-ring sealing

Applications

  • Extruder degasification
  • Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization)
  • Evacuation of central vacuum systems
