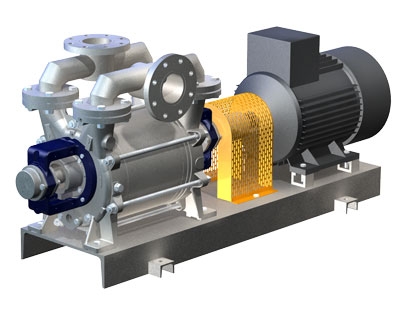

VU Series

Chi tiết sản phẩm

50 Hz

Qmax

pmin

VU-20, 2800 1/min

21 m³/h

150 mbar

VU-40, 2800 1/min

47 m³/h

150 mbar

VU-80, 1450 1/min

80 m³/h

150 mbar

VU-140, 1450 1/min

145 m³/h

150 mbar

VU-220, 1450 1/min

223 m³/h

150 mbar

VU-300, 1450 1/min

284 m³/h

150 mbar

VU-450, 1450 1/min

438 m³/h

150 mbar

VU-500, 1450 1/min

510 m³/h

120 mbar

VU-600, 1450 1/min

669 m³/h

120 mbar

VU-800, 975 1/min

863 m³/h

120 mbar

VU-1200, 975 1/min

1173 m³/h

120 mbar

VU-1600, 975 1/min

1552 m³/h

120 mbar





Media

  • Dry and humidified gases
  • Operational liquid max. 100 °C
  • Absorbed gas max. 120 °C

Design

Single-stage pumps in base plate version with B3 standard motors

Sound pressure level 66 - 76 db(A)

Motor

1,1 – 55,0 KW, 1~Mot / 3~Mot

Materials

  • Stainless steel
  • Cast iron
  • Non-ferrous metal

Suction connection

G 1 1/4 – DN 125

Pressure connection

G 1 1/4 – DN 125

Sealing

  • Mechanical seal

Advantages

  • Operating point > 200 bar
  • Tried-and-tested robust design
  • Developed/designed for continuous operation
  • Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
  • Requirement-related design due to the use of diverse materials

Applications

  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Degasification (oxygen deprivation) of meat and sausage products
  • Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam
  • Vacuum cooking of fruits, vegetables, pulps and mush
  • Thickening and crystallisation of sugar under vacuum
  • Removal of internal organs in the fish and poultry processing industry
  • Distillation / séparation de liquides
