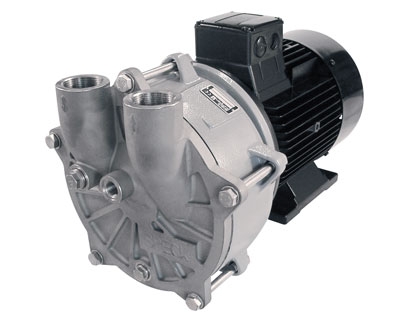

VG Series

Chi tiết sản phẩm

50 Hz

Qmax

pmin

VG-30, 2850 1/min

26 m³/h

70 mbar

VG-55, 2850 1/min

48 m³/h

70 mbar

VG-95, 1450 1/min

70 m³/h

55 mbar

VG-130, 1450 1/min

100 m³/h

55 mbar

VG-155, 1450 1/min

123 m³/h

40 mbar

VG-255, 1450 1/min

203 m³/h

40 mbar





Media

  • Dry and humidified gases,
  • Delivery of liquids and minor impurities
  • Operational liquid 80 °C max.
  • Absorbed gas 120 °C max.

Design

Single-stage pump with valveless technology

Close-coupled version with B35 close-to-standard motors

Bracket version with B5 standard motors

Sizes VG 95 up to 255 in thread and flange version

Sound pressure level 65 - 68 db(A)

Motor

0,75 – 8,2 KW, 3~Mot

Materials

  • Stainless steel

Suction connection

G 1 – DN 50

Pressure connection

G 1 – DN 50

Sealing

  • Mechanical seal

Advantages

  • Extended maintenance intervals due to less deposits and wear as almost free of dead spots
  • Easily accessible working chamber
  • Almost as powerful as V series
  • Suitable for delivery of liquids and minor impurities
  • Suitable for frequently changing operating conditions

Applications

  • Vacuum calibration for the manufacturing of plastic profiles
  • Degasification of toothpaste, cremes, lotions, marzipan etc.
  • Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam
  • Removal of internal organs in the fish and poultry processing industry
  • Distillation / séparation de liquides
  • Recovery of condensates (solvents)
