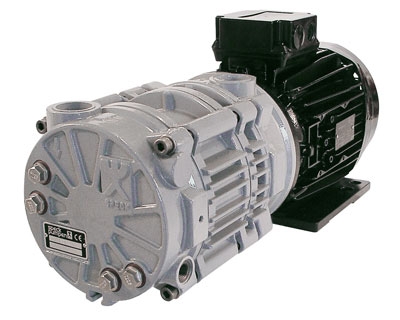

Speck Pumpen Vacuum Pump VZ series - Bơm chân không Speck dòng VZ
VZ-30 Qmax 30 m³/h, Pmin 33 mbar
VZ-50 Qmax 49 m³/h, Pmin 33 mbar
VZ-110 Qmax 107 m³/h, Pmin 33 mbar
VZ-140 Qmax 145 m³/h, Pmin 33 mbar
VZ-180 Qmax 186 m³/h, Pmin 33 mbar
|
Media
|
- Dry and humidified gases
- Operational liquid max. 100 °C
- Absorbed gas max. 120 °C
|
|
Design
|
Two-stage pumps
Close-coupled version with B35 close-to-standard motors
Base plate version with B3 standard motors
Bracket version with B5 standard motors
Close-coupled version upon request
|
|
Motor
|
1,1 – 8,2 kW, 3~Mot
|
|
Materials
|
- Stainless steel
- Cast iron
- Non-ferrous metal
|
|
Suction connection
|
G 1 – DN 40
|
|
Pressure connection
|
G 1 – DN 40
|
|
Sealing
|
- Separating can / Magnetic drive
- Mechanical seal
|
|
Advantages
|
- Developed/designed for continuous operation
- Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
- Requirement-related design due to the use of diverse materials
- With a maximum sound pressure level of 60 to 66 db(A) much more quiet than a conventional liquid ring vacuum pump
- VZ 110 / 140 / 180 are alternatives to VH series due to identical connection dimensions
|
|
Applications
|
- Extruder degasification
- Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization)
- Degasification of toothpaste, cremes, lotions, marzipan etc.
- Vacuum cooking of fruits, vegetables, pulps and mush
- Thickening and crystallisation of sugar under vacuum
- Distillation / séparation de liquides
|
