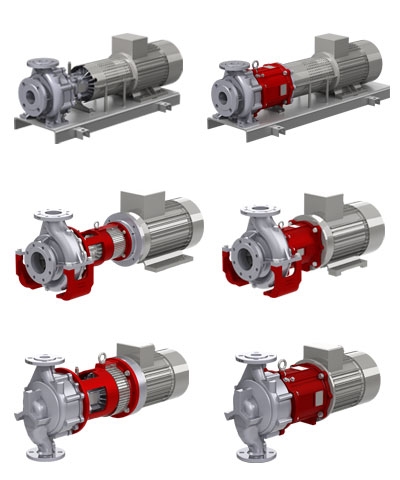

Heat transfer pump TOE-GI / GA / GN - Speck Pumpen
These Speck heat transfer pumps with mechanical seals are suitable for oil applications with a maximum temperature of 350 °C. These pumps can be applied in heating units and industrial temperature control units, among others.
TOE-GN / GA / GI-32-160 ; TOE-GN / GA / GI-32-200 ; TOE-GN / GA / GI-32-250 ; TOE-GN / GA / GI-40-200 ; TOE-GN / GA / GI-50-160 ;TOE-GN / GA / GI-50-200 ; TOE-GN / GA / GI-50-250 ; TOE-GN / GA / GI-65-160 ; TOE-GN / GA / GI-65-200 ; TOE-GN / GA / GI-65-250 ; TOE-GN / GA / GI-80-160 ; TOE-GN / GA / GI-80-280 ; TOE-GN / GA / GI-80-250 ; TOE-GN / GA / GI-100-160 ; TOE-GN / GA / GI-100-200 ; TOE-GN / GA / GI-100-250 ; TOE-GN / GA / GI-125-200 / TOE-GN 040160B0001
Heat transfer pump TOE-MI / MA /MN - Speck Pumpen
These Speck heat transfer pumps with magnetic coupling are suitable for oil applications with a maximum temperature of 350 °C. These pumps can be applied in heating units and industrial temperature control units, among others.
TOE-MI / MA / MN-32-160 ; TOE-MI / MA / MN-32-200 ; TOE-MI / MA / MN-32-250 ; TOE-MI / MA / MN-40-200 ; TOE-MI / MA / MN-50-160 ;TOE-MI / MA / MN-50-200 ; TOE-MI / MA / MN-50-250 ; TOE-MI / MA / MN-65-160 ; TOE-MI / MA / MN-65-200 ; TOE-MI / MA / MN-65-250 ; TOE-MI / MA / MN-80-160 ; TOE-MI / MA / MN-80-280 ; TOE-MI / MA / MN-80-250 ; TOE-MI / MA / MN-100-160 ; TOE-MI / MA / MN-100-200 ; TOE-MI / MA / MN-100-250 ; TOE-MI / MA / MN-125-200
|
50 Hz
|
Qmax
|
Hmax
|
|
TOE-GN/GA, TOE-MN/MA
|
20 – 550 m³/h
|
2 – 100 m
|
|
TOE-GI, TOE-MI
|
25 – 90 m³/h
|
5 – 60 m
|
|
Advantages
|
- Interchangeability of many parts at all series
- Same hydraulics for TOE-GN / GA / MN / MA series
- Same hydraulics for TOE-GI / MI series
- Synthetic heat transfer media with low viscosities are delivered without any problems up to 350 °C
- Hydrodynamically lubricated sleeve bearing in SiC
- Low-wear impeller side chamber
- Pumps with mechanical seal
Mechanical seal casing with antivortex baffle for the prevention of gas bubble rotation,
distortion-resistant casing cover with cast integral fins for the accommodation of insulation pads
- Pumps with magnetic coupling
Wide range of separating can and bearing sizes for optimum adjustment to delivery data and minimization of magnetic power loss,
transferable torques up to 500 Nm possible
|
|
Applications
|
- Heating of baking ovens and large frying units
- Cooling of cold stores and refrigerated counters
- Tempering of tool molds
- Production of edible oil and dry masses
- Heating of calanders, melting pots, agitators and mixing tanks in the leather, rubber, and chemical industry and for the production of lacquers, colors and adhesives
- Heating of tank, fuel oil, and bitumen chambers on stationary and mobile platforms as well as in-tank ships, in crude oil production and processing
- Heating of coloring, coating, washing, pressing and ironing systems in the textile industry
- Heating of systems for bitumen production and processing, for drying applications, and for the production of binders in the building industry
- Heating of systems for the production of liquid crystals in the pharmaceutical industry
- Heating of pipelines and treatment stations in the field of gas gathering
- Heating of temperature controllers in the die-cast industry
|
